RCYD(C)系列皮带自卸式永磁除铁器
添加时间：2016/11/27 9:08:11 浏览量：
产品名称：RCYC、RCYD系列皮带自卸式永磁除铁器
出品单位：潍坊沃森重工有限公司
RCYC、RCYD系列皮带自卸式永磁除铁器简述：
RCYD、RCYD系列永磁自缷除铁器是由高性能永磁磁芯、弃铁皮带、减速电机、框架、滚筒等部分组成，与各种输送机配套使用。用于从非磁性物料中自动清除铁磁性物质。RCYD、RCYC系列悬挂自卸式永磁除铁器是一种自动卸铁式除铁装置，工作时将不断吸附在除铁器上的铁磁性物质通过卸铁皮带的旋转自动抛出，达到自动卸铁目的。该机型应用范围广、节能省电、维护方便、故障率极低，在极其恶劣的环境中运行稳定可靠，是众多厂家采用较多的机型。 拥有防爆型。
永磁除铁器型号意义的表示：
RCYC、RCYD系列皮带自卸式永磁除铁器安装示意图：
RCYC、RCYD系列皮带自卸式永磁除铁器主要技术参数： （ 以下参数供参考，可根据客户要求订做）
| 型号 | 适应 带宽 mm | 额定吊高mm | 物料厚度≤mm | 磁场强度≥mT | 驱动功率≤KW | 适应带速≤m/s | 工作制 | 重量 kg | 外形尺寸mm | ||||
| A | B | C | D | E | |||||||||
| RCYD(C)-5 | 500 | 150 | 100 | 65 | 1.5 | 2.5 | 连续 | 750 | 1900 | 735 | 935 | 753 | 950 |
| RCYD(C)-6 | 600/650 | 180 | 130 | 65 | 1.5 | 920 | 2050 | 780 | 1030 | 753 | 1100 | ||
| RCYD(C)-6.5 | 650 | 200 | 150 | 70 | 1.5 | 1200 | 2165 | 780 | 1080 | 888 | 1200 | ||
| RCYD(C)-8 | 800 | 250 | 200 | 70 | 2.2 | 1400 | 2350 | 786 | 1280 | 1088 | 1300 | ||
| RCYD(C)-10 | 1000 | 300 | 250 | 70 | 3 | 2120 | 2660 | 920 | 1550 | 1335 | 1400 | ||
| RCYD(C)-12 | 1200 | 350 | 300 | 70 | 4 | 3350 | 2860 | 1010 | 1720 | 1515 | 1550 | ||
| RCYD(C)-14 | 1400 | 400 | 350 | 70 | 4 | 4450 | 3225 | 1050 | 1980 | 1755 | 1800 | ||
| RCYD(C)-16 | 1600 | 450 | 400 | 70 | 5.5 | 6200 | 3350 | 1180 | 2160 | 1850 | 1950 | ||
| RCYD(C)-18 | 1800 | 500 | 450 | 75 | 5.5 | 8100 | 3580 | 1210 | 2450 | 2130 | 2200 | ||
| RCYD(C)-20 | 2000 | 550 | 500 | 75 | 7.5 | 9700 | 3800 | 1300 | 2700 | 2410 | 2400 | ||
RCYC、RCYD-T系列皮带自卸式永磁除铁器拥有超强磁型：T1型磁场强度90mT T2型为120mT T3型为150mT
RCYD (C) series of permanent magnetic separator dump by high performance permanent magnetic core, abandoned iron belt, gear motor, frame, rollers and other components, and a variety of transportation machines. From a non-magnetic materials are automatically cleared 0.1-25 kg weight ferromagnetic material. Its internal magnetic circuit design using computer simulation, perfect double pole structure, ensure the machine in harsh environments without failure the long run.
Technical characteristics:
◆ magnetic circuit design using computer simulation, perfect double pole structure, the magnetic field strength, gradient large suction.
◆ High-performance iron-boron magnetic source made, high energy product, demagnetization, eight demagnetization not exceed 5%.
◆ drum-shaped roller structure, with automatic correction function, sealed bearing, good sealing performance, able to adapt to a variety of harsh environments.
◆ belt automatic unloading of iron, can protect the long-term trouble-free continuous operation.
◆ control section with belt conveyor chain, to achieve local manual control and centralized control in two ways.

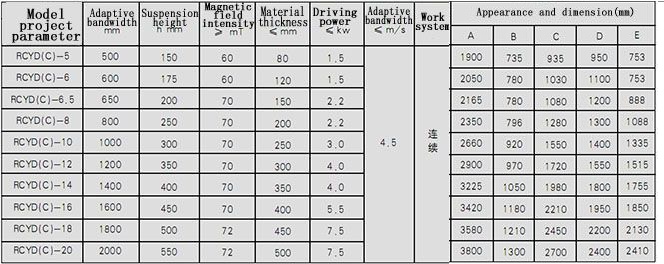

The main technical parameters:
